ip65 win ce system rugged Electric Meter Reading Instrument

FOB Reference Price:Get Latest Price
$200.00 - $500.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Jepower
Model Number:
HT368
Style:
Handheld Computer
Color:
Orange, Orange/Black
Screen Size:
3.5 inch
Weight:
<400g, <450g including standard battery package
Memory Capacity:
2G
Processor Type:
ARM11
Operating System:
Win CE
Products Status:
Stock
Camera:
5mega-pixel
certificate:
CE ROHS CCC
Barcode Type:
1D barcode and 2D barcode
Communication:
WIFI/3G/GPRS/CDMA/RFID/Bluetooth/Infrared/GPS
RFID:
Support
Type:
Data Collection Terminal
Size:
195mm*78mm*43mm
Keyboard:
28 keys letters-digit shift backlit keyboard
Supply Ability
Supply Ability:
15000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Cartons
Port
Guangzhou
Lead Time :
3-30days

Rugged Electric Meter Reading Instrument

With Free SDK! it's extremely easy to develop any practical softwares you need.

Your Best Choice of rugged Electric Meter Reading Instrument, Direct Deal from Factory.

HT368 is a Rugged Electric Meter Reading Instrument qualified with full performance. Based on ARM11 and Windows CE6.0, its high-performance integrates computer technology, image technology, wireless communication technology, barcode scanning, RFID, GPS and etc.

Features

OS : Windows CE 6.0
Industrial Protection : IP65
Screen : 3.5 inch
Communication : 3G/WIFI/Bluetooth/RFID/Infrared/GPS

Rugged Electric Meter Reading Instrument - Jepower HT368

With IP65 Industrial Protection of Waterproof and Dustproof and Shock Resistant

Handheld PDA Jepower HT368Handheld PDA Jepower HT368Handheld PDA Jepower HT368

The next generation of HT368 is a Data Collection Terminal qualified with full performance. Based on the platform of ARM11 and operation system of Windows CE6.0. Its high-performance integrates computer technology, image technology, wireless communication technology, barcode scanning, RFID, GPS and etc. It shows advantages on advanced functions, interfaces in full range, compatibility to diversified protocols, and the industry-level design (IP65), in addition endurable to various severe working environment.



Handheld PDA Jepower HT368

Handheld PDA Jepower HT368

Handheld PDA Jepower HT368

Handheld PDA Jepower HT368







Rugged Electric Meter Reading Instrument Specification

Processing Platform

Processor

800MHz Telechips ARM11-TCC8902

Operating System

Microsoft Windows CE6.0

Memory

2GB NAND Flash

System Environment

SDK

Microsoft Windows CE SDK

Programming

Support C++/C#.NET/VB.NET / Visual Studio 2005/2008 or higher edition

Data acquisition

1D Barcode Scanning*

Code 39; Codabar; Code 128; Discrete 2 of 5; Interleaved 2 of 5;
Code 93; UPC A; UPC E; EAN 8; EAN 13; MSI; EAN 128; Code 39;ISBN,ISSN

RFID*

Support 13.56MHz(ISO14443A) ,125K (EM4100)

Infrared Communication*

Read infrared smart meter data, applying to power meter reading system

GPS*

positional accuracy less than 10m, rate accuracy less than 0.01m/s

Wireless Communication

WIFI*

IEEE 802.1b/g

Communication Module*

2G / GPRS

3G / CDMA2000 / WCDMA

Bluetooth*

Bluetooth V2.0(safety certificate, data encryption)

Power Management

Power supply

3.7V 4000mAH Polymer batteries (Working time over 8hrs)

Physical Property

Camera*

5 megapixels with flashlight
Display3.5 inch color tangible TFT-LCD screen QVGA(240×320)

Keyboard

26 keys letters-digit shift backlit keyboard

Voice frequency

0.5Wspeaker

Measurement

195mm×78mm×43mm

Weight

<450g including standard battery package

Expansion Slot

Support 1 SIM card, 2 PSAM card and 1 Micro SD(TF) card

Operating Environment

Operating Temperature

-20°C to +50°C

Storage Temperature

-25°C to +70°C

Humidity

5%RH-95%RH(no condensation)

Protection Grade

Conform to IP65 sealing standard

Shock Resistance

Within operating temperature, 6 surfaces are able to withstand drop from 1.5m height

Rolling Test

In the diameter range of 0.5m, the 6 surfaces undergo rolling test for 1000 times.

Anti-static

±8kVcontact discharge;±15kVair discharge

Extended Interface

USB2.0; IO extended port(RS-232,RS-485 serial ports); infrared communication, Optical communication

Scanning Parameter

Standard Parts

USB Cable x1 , Handwriting Pen x1, Rope x2, Charger x1, Communication Cable x1, Software Disc x1

Warranty

12 months (Accessories are exclusive)

Product Certificates

CCC standard certificate /EIP contamination control mark /GPRS and EVDO Network Access License of Telecommunication Equipment

PS. *mark stands for optional funtion



How to buy ?

Please feel free to mail us via marketing#jiebaodz.com (change # to @) or call us by +86 - 13922199533 Ms.Liang

Skype: jepowertech

Read more details through http://www.jepower.net

Production Department

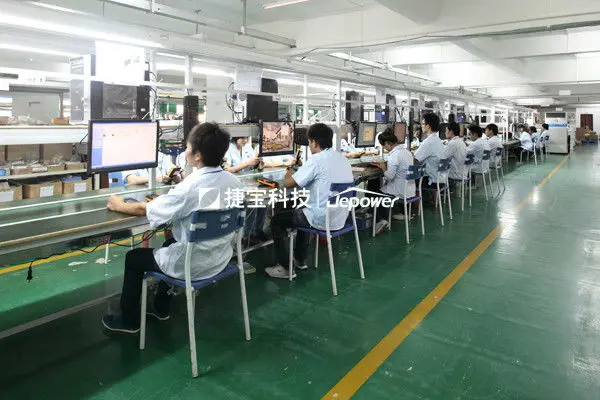

Production line

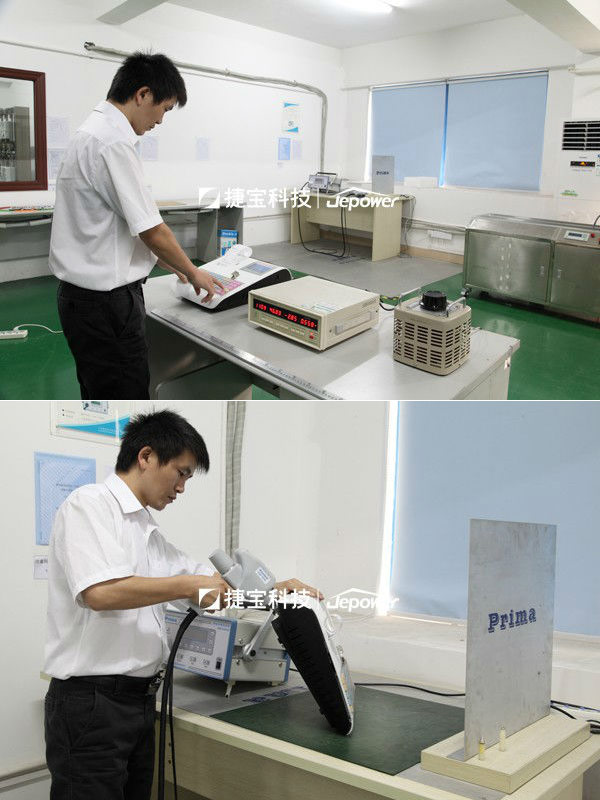

PDA-test
Data Collection Terminal is being tested

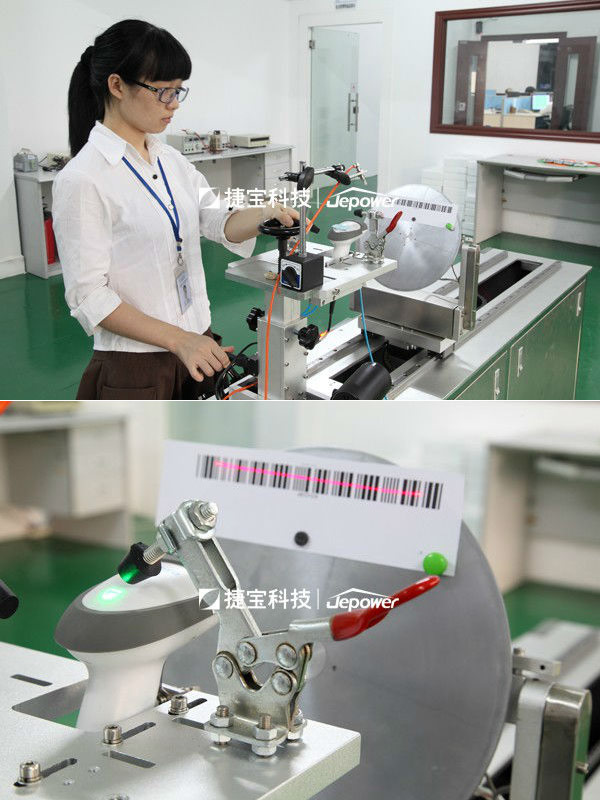

HR-test
barcode scanner is being tested

C158-test
C158 POS is being tested
